403C11A32M00000
Manufacturer:
CTS Corporation
Mfr.Part #:
403C11A32M00000
Datasheet:
Description:

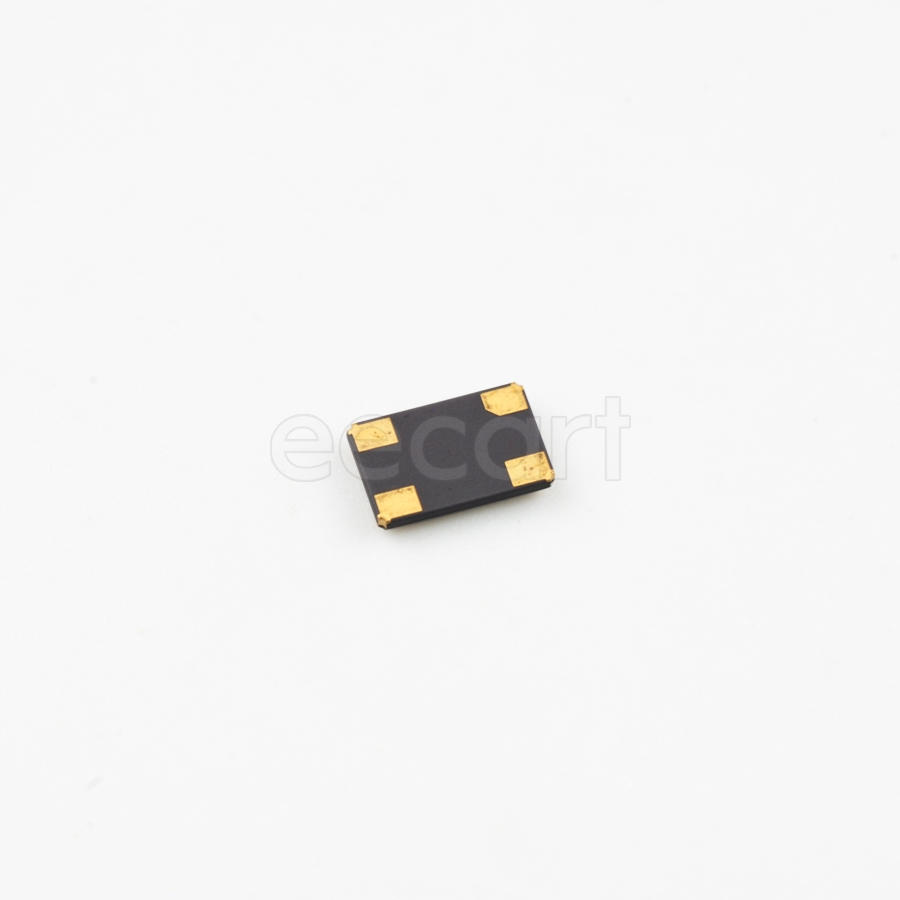

Crystals 3.20mm×2.50mm SMD/SMT 32 MHz 10 pF
| Parameter | Value |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ω |
| Length | 3.2 mm |
| Width | 2.4892 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 4 |
| Height | 787.4 µm |
| Packaging | Reel |
| Depth | 2.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Frequency | 32 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Load Capacitance | 10 pF |
| Series Resistance | 60 Ω |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.8 mm |
| Drive Level | 10 µW |
Stock: 2119
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.18381 | $1.83810 |
| 25 | $0.18166 | $4.54150 |
| 50 | $0.17953 | $8.97650 |
| 100 | $0.17184 | $17.18400 |
| 300 | $0.16926 | $50.77800 |
| 500 | $0.16671 | $83.35500 |
| 1000 | $0.16542 | $165.42000 |
| 3000 | $0.16414 | $492.42000 |
| 5000 | $0.15902 | $795.10000 |
